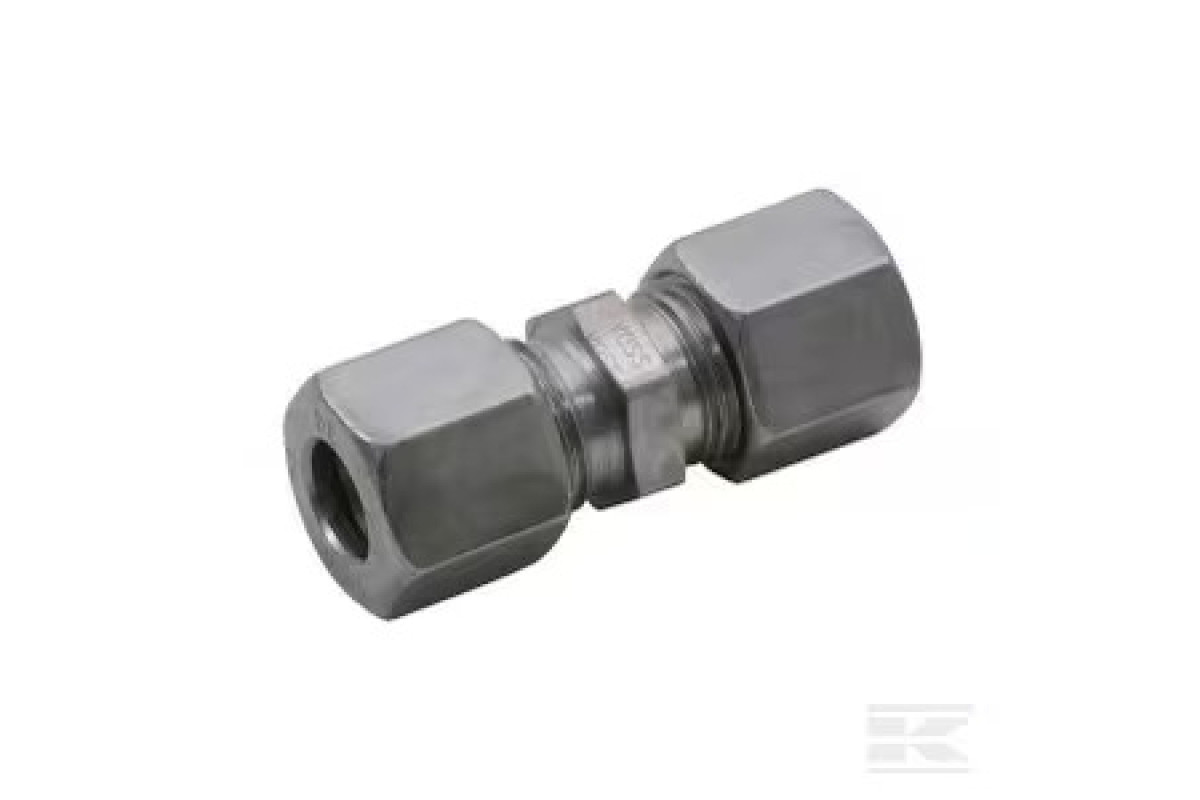

4MM X 4MM COMPRESSION ADAPTOR
£4.37
4MM X 4MM COMPRESSION ADAPTOR
| Part number | GV4LL | |
|---|---|---|
| EAN | 8719607083348 | |
| Unit | Each | |
| Brand | Voss | |
| Pros | Optimal cutting ring connection and functionality | |
| Product details |
| |
| Includes |
| |
| Shape | Straight | |
| Connection 1, type | Cutting ring | |
| Connection 1, type - male/female | Male | |
| Series connection 1 | 4LL | |
| Connection no 1 diameter | 4 mm | |
| Connection 1, thread diameter | M8 | |
| Connection 1, thread pitch | 1.00 mm | |
| Connection 1, thread type | Metric | |
| S1Connection no 1 wrench size | 10.0 mm | |
| Cone angle side 1 | 24 ° | |
| Connection 2, type | Cutting ring | |
| Connection 2, type - male/female | Male | |
| Connection no. 2 diameter | 4 mm | |
| Connection 2, thread diameter | M8 | |
| Connection 2, thread pitch | 1.00 mm | |
| Connection 2, thread type | Metric | |
| Connection 2, wrench/spanner size | 9.0 mm | |
| L1Connections distance | 12 mm | |
| DIN standard |
| |
| Max working pressure | 100 BAR | |
| Surface treatment | Zinc, Nickel-plated | |
| LTotal length | 31 mm |
